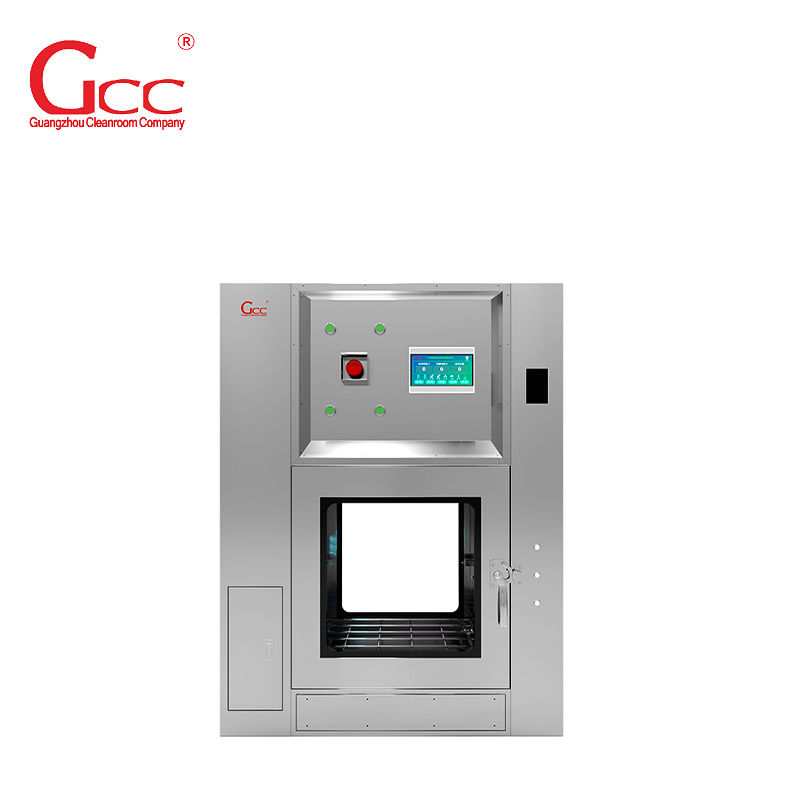

This product is a Dual-mode Decontamination Pass Box manufactured with a full 304 stainless steel structure. It integrates two decontamination technologies—pulsed xenon ultraviolet light and automated alcohol spray—to provide an efficient and reliable surface bio-decontamination solution for material transfer in high-standard clean environments. The all-stainless steel construction ensures exceptional corrosion resistance, ease of cleaning, and long service life, fully complying with stringent regulations such as cGMP, GLP, and biosafety laboratories.
Core Functions
Dual-Mode Decontamination: Supports independent or combined use of pulsed xenon UV and alcohol spray to address diverse material and decontamination requirements.
Full Stainless Steel Structure: The interior, exterior, and frame of the equipment are made of 304 stainless steel (316L optional), eliminating the risk of coating peeling and withstanding frequent chemical cleaning and disinfection.
Surface Bio-Decontamination: Pulsed xenon UV provides rapid, broad-spectrum ultraviolet disinfection, while the alcohol spray covers complex surfaces and hard-to-reach areas, ensuring thorough decontamination.
Clean Airflow Maintenance: Equipped with H13/H14-grade HEPA filters, it creates a unidirectional vertical airflow within the chamber,maintaining an internal cleanliness of ISO Class 5 (Class 100).
Secure Interlocked Transfer: Mechanical and electronic interlock systems prevent both doors from opening simultaneously, maintaining area pressure differentials and isolation.
Applications:
Pharmaceutical and Biologics Manufacturing
Biosafety Laboratories (BSL-2/3)
Cell and Gene Therapy Facilities Sterile
Medical Device Manufacturing
Research Laboratories
Feature
1. Full 304 Stainless Steel Structure: The interior and exterior cabinets, frame, and internal components are made of high-quality 304 stainless steel (316L optional),seamlessly integrated with no sanitary dead corners, offering excellent chemical corrosion resistance and mechanical strength.
2. Efficient Pulsed Xenon Technology: High-intensity, broad-spectrum pulsed UV light with short disinfection cycles, mercury-free and environmentally friendly.
3. Integrated Alcohol Spray and Exhaust System: Micron-level misting nozzles paired with a dedicated exhaust system to safely handle alcohol vapors, protecting filters and the cleanroom environment.
4. Compliance-Oriented Design: Smooth surfaces and rounded edges facilitate cleaning and disinfection; the design meets cGMP requirements for equipment surface integrity and cleanability.
Services
1.Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
Quality control
1. Checking raw material before producing.
2. Checking one by one before the assembling
3. Checking one by one during the production
4. Have the random inspection before the delivery.
Warranty
Our equipment is warranty for 1 year excluding consumable parts and accessories. All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures. Additional IO/OQ/GMP document is available upon request. Contact our sales representative for specific warranty details or document request.
Main on Technical
| Parameter Category |
Specification Details |
| Construction Material |
Interior/Exterior: 304 Stainless Steel |
| Surface Finish |
Mechanical Polishing/Brushing |
| Disinfection Methods |
Pulsed Xenon UV + Automated Alcohol Spray Mist |
| UV Intensity |
≥100 μW/cm² (Customizable to higher intensities) |
| HEPA Filter |
H13 (99.97% @ 0.3μm) or H14 (99.995% @ 0.3μm) |
| Internal Cleanliness |
ISO Class 5 (Class 100) |
| Control System |
Integrated Touch Screen PLC |
| Safety Features |
Door Interlock, UV/Spray Interlock, Emergency Stop |
| Power Supply |
AC 220V ±10%, 50/60Hz (Customizable to 110V) |
| Standard Dimensions (W×D×H) |
Fully customizable |
| Certifications |
CE, ISO 9001 |
FAQ
Q1: Why is a full stainless steel structure important?
A: The all-stainless steel structure eliminates the risk of particulate contamination from coating peeling, withstands frequent wiping and corrosion from various disinfectants such as alcohol,isopropanol, and aldehydes, and is easy to clean without residue, meeting GMP mandatory requirements for equipment surface integrity and cleanability.
Q2: How does the alcohol spray mode work? Will it damage the equipment?
A: When the spray mode is activated, the built-in exhaust system simultaneously starts, directly expelling alcohol vapors outdoors without passing through the internal circulation system. The full stainless steel structure itself has excellent alcohol corrosion resistance, so the equipment will not be damaged.
Q3: Are customized dimensions and configurations supported?
A: Yes. We offer comprehensive customization services, including width, depth, height, door opening direction, stainless steel grade (304 or 316L), viewing window position, and additional interfaces. Please provide your detailed requirements.
Q4: With a stainless steel exterior, is anadditional wall mounting frame required?
A: Typically not. Our pass-box is designed with a sturdy mounting flange for direct embedding into the wall and sealing. The all-stainless steel appearance also integrates easily with modern laboratory environments.
Q5: What validation support documents do you provide?
A: We can provide material certificates for the equipment, HEPA filter certificates, and instrument calibration certificates with the shipment. We can also assist in providing draft templates for Installation and Operational Qualification (IQ/OQ) to support your validation process.
